Commercial and institutional projects require investing in quality doors, frames, and door closers by limiting the force of door swing. With high traffic and abuse, extending the life of your opening with an overhead is the way to go . Typically overhead models come in different sizes and functions, making it complicated for customers to stock, specify, install, or order exactly what you need.

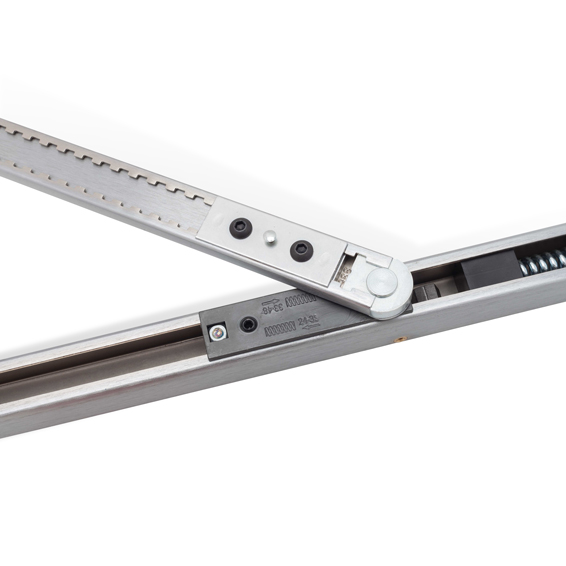

The new Glynn-Johnson 510 Concealed Series and 550 Surface Series heavy duty, adjustable overhead makes your investment not only smart, but simple. Simply stock one 510 or 550 and it is versatile enough to replace dozens of skus in inventory, making this the most comprehensive overhead available in the market today.

Field adjustability

  • Stock less skus by carrying this adjustable over head that can replace many
  • Telescoping arm works for 24” to 48” wide openings
  • Adjustable functions for stop and hold open
  • Degree of opening is field-adjustable after installation from 85°-110 °

Quality design

  • For use on heavy duty, high traffic, heavy weight doors
  • Non-handed
  • Shock absorbing spring allows for less abrupt dead stop

Available options and accessories

  • Friction hold-open conversion kit
  • Angle jamb bracket kit
  • Shim kit for blade stop mounting
  • Comes standard with sex bolts for 1-3/4” to 1-7/8” thick door
  • For the 300 Series stainless steel, brass and steel substrates, the 510 and 550 models are available in the largest selection of finishes in the industry; stainless steel models offer the highest resistance to corrosion
  • Available in:
    • (US32) Polished stainless steel
    • (US32D) Satin stainless steel

The 510 and 550 overhead's can be adjusted in the field for the various door widths from 24"-48". Also, each model can switch in the field from stop to hold open function with the flip of a latch. A optional friction kit is available if needed.

Models include:

  • 510S-H --510 Concealed Series, Adjustable Arm, Stop and Hold
  • 550S-H -- 550 Surface Series, Adjustable Arm, Stop and Hold
Options available include:
  • Conversion kits are sold separately
  • 510-550 Friction Hold Open Conversion Kit
  • 510 Mounting package
  • 550 Mounting package
Accessories:
  • AJK500*-- Angle Jamb Bracket Kit
  • SHK550 -- Shim Kit for Blade Stop Mounting

* Note Angel Jamb Brackets affix to Standard Jamb Brackets to allow for flush transom or hinge side mounting



When ordering, specify:

1.) Model number 2.) Finish 3.) Options & Accessories (if applicable)

Example: 550S-H, 630,  AJK500


  • Grade 1 ANSI/BHMA A156.8.
  • UL listed for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours in stop-only applications

Glynn-Johnson Overhead Door Holders/Stops Catalog

Glynn-Johnson 510 & 550 Series Overhead Data Sheet

Please note: We are in the process of updating the above catalog for the 510 and 550 Series. Check back for the updated catalog in November.
